Engineered For Any Size Operation.

Our new BioSpreader PTX brings heavy-duty to the next level. While other manufacturers use mild steel flighting, the PTX is built with hardened steel to prevent sagging and deformity over extended use. Our live floor has a 3/4" grade 80 logging chain with a higher breaking strength.

GET IN TOUCH


2022 Model Year Updates: New Standard Features.

Adjustable Front PTO SupportFirst of its kind in the industry. This eliminates the need to cut drive shafts to fit different tractors. Simply adjust the distance from the hitch on the adjustable PTO support for your specific tractor and go.
CAT 4 Hitch: With a 2" articulating insert plus a reducer to accommodate a 1.5" pin.
LED Light Package: The LED lights are constructed with high impact nylon housings, polycarbonate (PC) lenses, stainless hardware and weather pack connectors.
Safety Chain: The heavy-duty safety chain is a 5/8" Grade 70 assembly compliant with ANSI/ASAE S338.5.
Jack Mount: Separate jack mount allows producers to remove the jack from the draw bar for safe keeping while in use.
Document Holder: Ensures the owner's manual is securely stored behind the ladder.
Side extensions: Now installed as a standard feature on both the 7020PTX and 8020PTX.

BIOSPREADER FEATURES

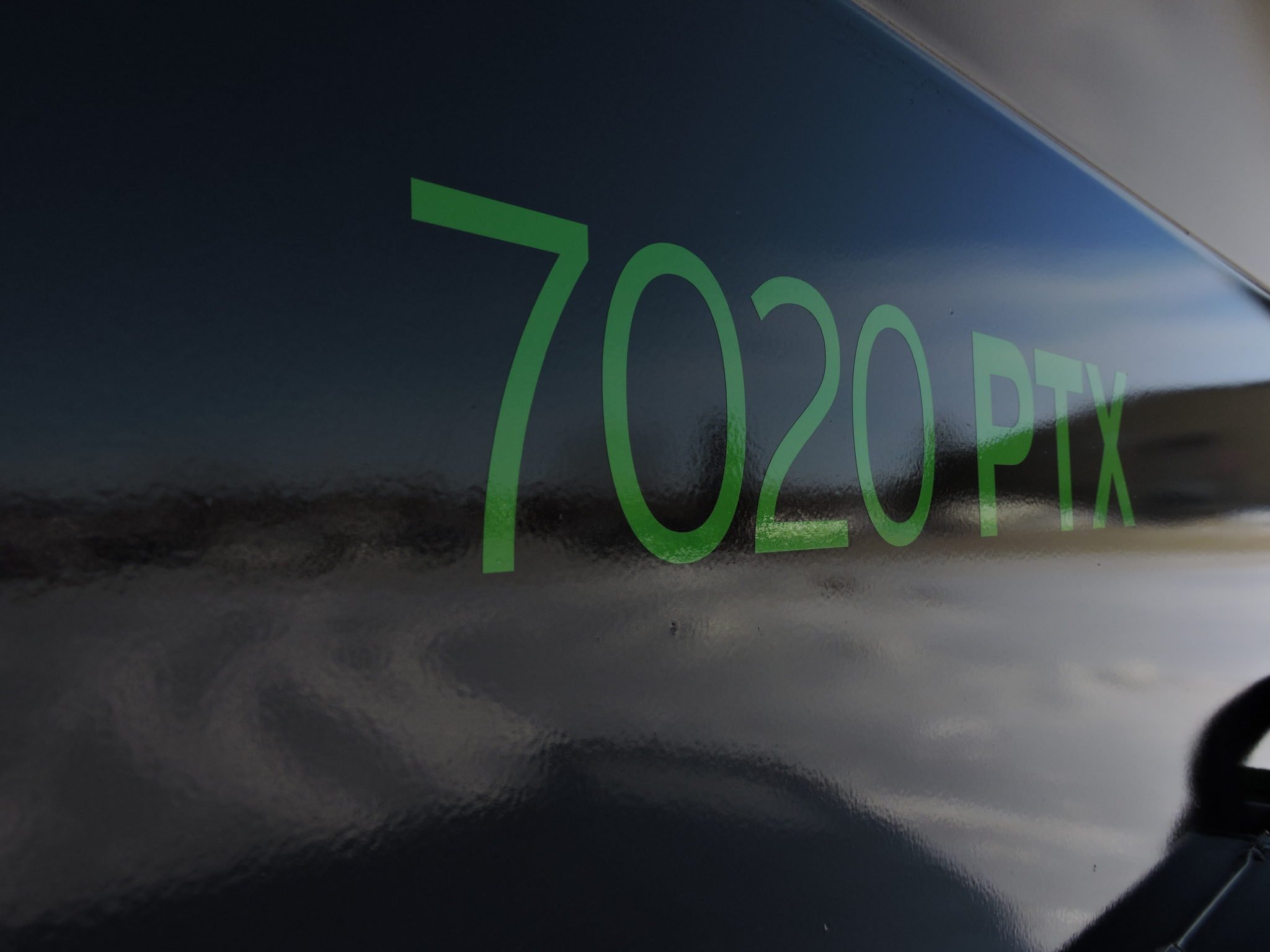

7020 PTX & 8020 PTX

Manure Spreader

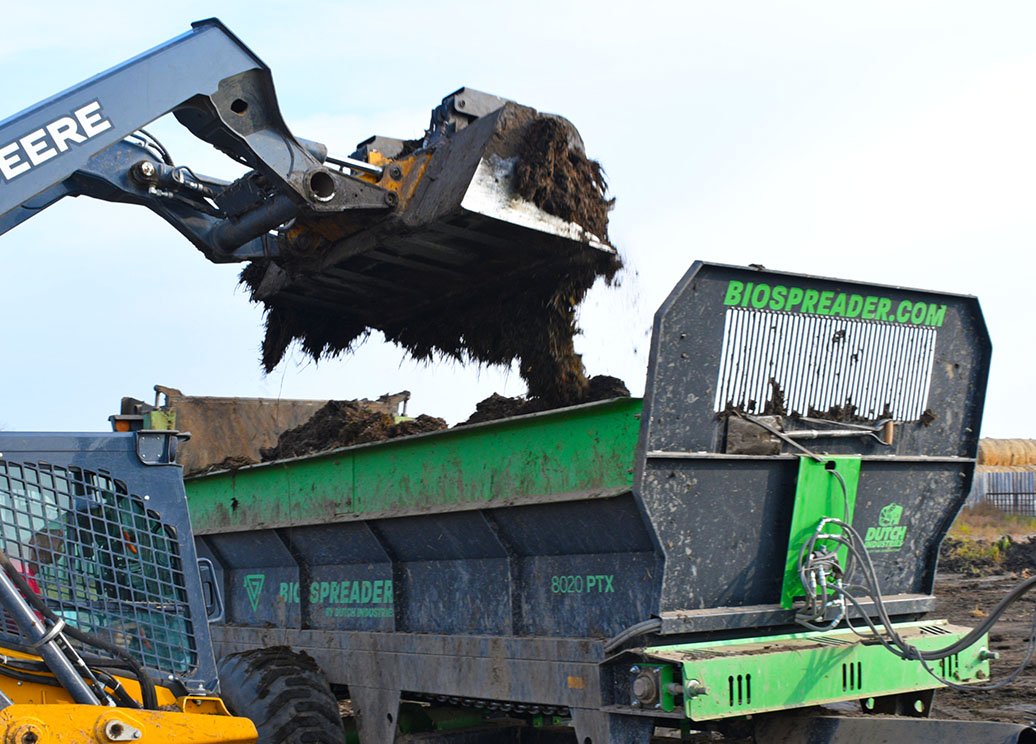

EASIER LOADING

The lower profile creates a reduced loading height on both the 7020PTX and 8020PTX models, and also allows for skid steer loading.

BioSpreader Maximum Capacity
MAX CAPACITY

Multiple capacity configurations on both the 7020PTX and 8020PTX models. Now 12-21 tons are achievable with the addition/removal of side extensions.

BioSpreader Manure Spreader has low maintenance
LOW MAINTENANCE

Zinc primer with powder coating allows for easier cleaning and a longer-lasting finish.

BioSpreader Manure Spreader has Smooth Ride
SMOOTHER RIDE

A rugged tandem walking beam axle delivers a smoother ride, less compaction, and better flotation over tough terrain. Superior structural integrity handles extreme impacts without disturbing your load.

BioSpreader Manure Spreader has Better Maneuverability
BETTER MANEUVERABILITY

A longer, better-balanced hitch provides a tighter turning radius in corrals and restricted spaces. 10’6” width allows it to easily pass through a 12’ gate.

BioSpreader Manure Spreader
HEAVY-DUTY EVERYTHING

Heavier gauge steel and robust construction for more durable trouble-free performance.

BioSpreader Vertical Beater Manure Spreader

Our innovative vertical beater system delivers rock-steady performance, uniform spread, cleaner discharge.

  • REINFORCED BEATERS
    A double shear spike retainer plate ensures teeth won't break.
  • TOUGHER REPLACEABLE TEETH
    Thicker abrasion-resistant teeth are significantly harder than regular steel so they last longer and can be swiftly replaced.
  • BETTER CONSISTENCY & DISTRIBUTION
    The addition of two sets of extra paddles at the base of the assembly catch anything missed by the main beaters. They’re also wider to aid in a more uniform, consistent distribution.
  • HANDLE ANYTHING 3-IN-1 GEARBOX
    Special isolator couplers cushion gearbox from shocks and jerks when starting up beaters. It also handles impacts from solid objects and materials. Extends both gear box and tractor life.
  • DETACHABLE VERSATILITY
    Easily removable beater assembly lets you use the trailer for hauling rocks or anything else. It can also be used as a forage wagon and bedding spreader.

To see the original design of the R&D BioSpreader going through the many steps and processes of mechanical and manure spread testing please watch the video above.

We put the BioSpreader 7020PT (Now PTX) through a rock ejection test to further test the strength and durability of our robust beater design. Watch the video and see the results.

The Dutch Industries BioSpreader 7020PTX and 8020PTX can unload in 90 seconds. See it for yourself.

The beaters, spikes, spike mounts, and paddles are heavier and more robust allowing me to spread frozen products and rocks which I currently can't do.Scott Gehlen (Approximately 135 cattle)

DUTCH INGENUITY.
NORTH AMERICAN QUALITY.

After producers explained their challenges handling manure under a variety of extreme weather and field conditions, we designed a manure spreader addressing their biggest concerns: affordability, load capacity, ease of use, maintenance, maneuverability, spread consistency and uniformity. Unlike other pull-behind compost spreaders, BioSpreader offers the most versatility in the market. Many operations can afford to purchase two!
